Detail produk:
|
| Kasar: | aluminium oksida SA | Bentuk: | Disk bundar |
|---|---|---|---|
| Kekerasan: | A24RBF | Kecepatan Kerja Maks: | 80 jt / dtk |
| Ukuran grit: | 24 #, 30 #, 46 #, | jaring: | 3 jaring fiberglass yang diperkuat |
| Aplikasi: | Baja logam besi dan Inox | Agen pengikat: | resin terikat |
| Ukuran Arbor: | 5/8 inci | Jenis disk: | Tipe pusat depresi |
| Menyoroti: | 30 grit roda gerinda abrasif,roda gerinda abrasif 115mm,30 grit sudut gerinda roda abrasif |
||

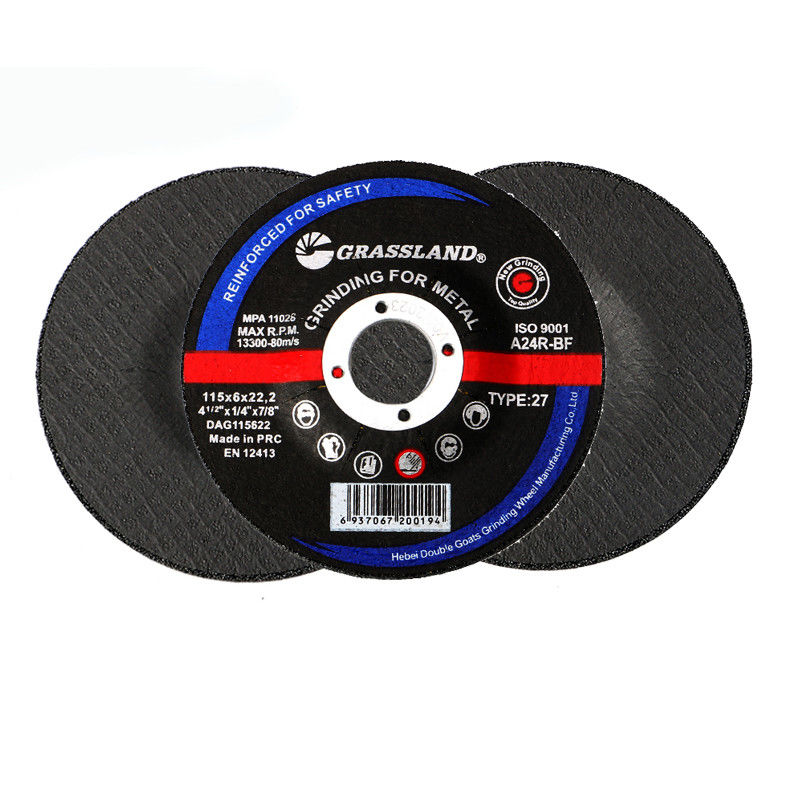

Cakram gerinda 115mm untuk baja (115 x 6 x 22.2mm) 4,5" GRASSLAND
Deskripsi Produk--
Roda kelas premium GRASSLAND diproduksi dengan butiran aluminium oksida yang diberi perlakuan panas, dibangun dengan 3 mesh fiberglass kekuatan tarik tinggi dan seimbang untuk menghindari getaran saat digunakan. berlaku untuk pemotongan logam, beton, pasangan bata, pipa, aspal, dan baja tahan karat.
Aplikasi: Grinding Steelwork Dressing Welds
| Informasi roda pemotong: | |||
| Nama Produk | 115X 6.0 X 22MM | Kasar | Alumina leburan monokristalin |
| Kekerasan | Kelas R | Standar Bersih | Fiberglass yang diperkuat |
| Kecepatan kerja maks |
80 m/s |
Layanan OEM | Dapat diterima |
| RPM | 13300 | Kemasan |
Kraft Karton dan Pallet |
| Ukuran pasir | 24#,30#,46#, | Kode HS | 68042210 |
|
Sertifikat |
MPA EN12413, ISO9001 |
Pelabuhan Muat | Tianjin atau yang lain |
-Cakram gerinda Inox tengah yang tertekan
| Kode barang | Dimensi | Dimensi | Kecepatan | Standar |
| (MM) | (Inci) | (rpm) | ||
| DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/dtk |
| DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/dtk |
| DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/dtk |
| DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/dtk |
| DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/dtk |
| DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/dtk |
| DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/dtk |
| DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/dtk |
| DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/dtk |
| DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/dtk |
| DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/dtk |
| Deskripsi Barang | Nomor Barang | Spesifikasi | Satuan | PCS/CTN | NW/GW (KGS) | UKURAN KARTON (CM) |
| Cakram pemotong datar untuk inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9,5/10,5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10,5/11,5 | 26,5*26,5*13.2 | |
| FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 13/12 | 32*32*11.7 | |
| FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16,5/17,5 | 32*32*13.2 | |
| FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37,5*19*22,7 | |
| FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37,5*19*13.2 | |
| FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19,5 | 24*24*25.7 |
